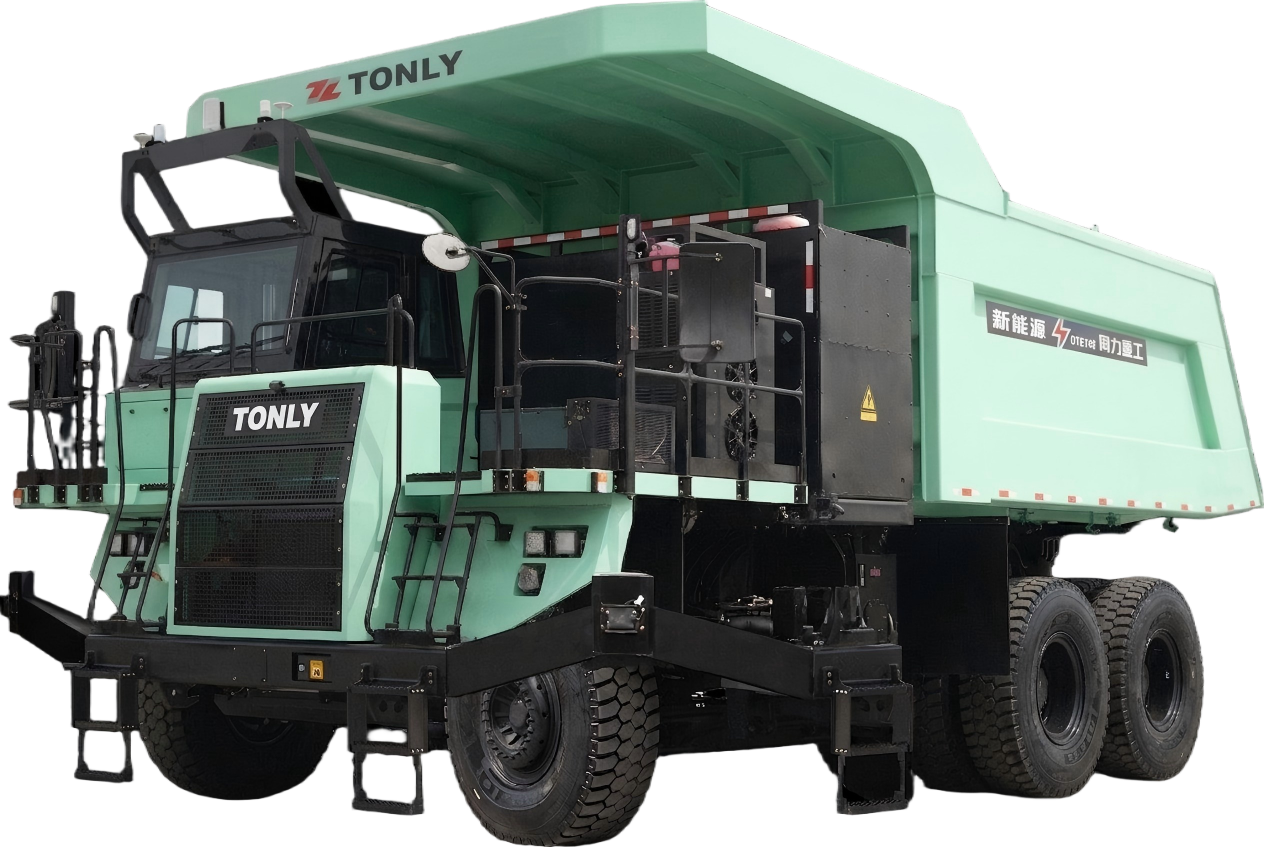

Tonly Hybrid New Energy DTH Range Extended REEV Disel Electric New Energy Wide Body Dump Truck 60T 90T Mining Truck

New Energy Mining Dump Trucks
High payload capacity, long service life, high efficiency, low consumption, intelligent operation

1. Equipped with a range extender system consisting of a diesel engine and generator, the engine always operates in its high-efficiency zone. The generator delivers high efficiency, enabling strong energy replenishment via range extension.
2. Easy access to fuel, with significantly lower overall fuel costs compared to conventional fuel-powered vehicles of the same tonnage.
3. Strong power performance: Dual drive motors deliver robust power, giving the vehicle excellent gradeability and high transport efficiency.
4. AMT transmission + dual-motor-assisted shifting strategy enables automatic gear changes with no power interruption during shifts.
5. Conventional air braking + electric feedback braking: Safer, more reliable, and more economical. When releasing the accelerator pedal while driving downhill (empty or loaded), electric feedback braking automatically engages to slow the vehicle, converting kinetic energy into electrical energy stored in the power battery. This also reduces the frequency of mechanical brake use, preventing brake fade and ensuring driving safety.
6. Full-hydraulic steering + emergency steering system: A specially designed full-hydraulic steering system developed by Tongli Heavy Industry ensures steering reliability, light operation and responsiveness. The hydraulic system is equipped with a high-pressure filtration system that effectively protects the cleanliness requirements of the priority valve and steering gear, greatly improving system reliability. The emergency steering unit provides short-term steering function in case of emergencies, significantly enhancing driver safety.
7. The vehicle adopts drive-by-wire design with reserved interfaces for unmanned driving, allowing direct integration with unmanned driving systems.
